The YEOSHE PV Series are high-pressure variable displacement axial piston pumps, designed as equivalents to Parker PV. They provide high efficiency, low noise, and long service life for a wide range of hydraulic applications.

Model Range：PV16 – PV320
Displacement：16cc ~ 320cc
Max Pressure：350 bar

For more technical information or application support, please feel free to contact us.。
YEOSHE is committed to delivering efficient and reliable hydraulic solutions for the future.

• Features

Advanced Swash Plate & Pre-compression Chamber Technology
Featuring a 9-piston design and advanced swash plate shaft structure combined with pre-compression chamber technology, significantly reducing noise and flow pulsation while improving system stability.
High Rigidity & Low Friction Design
Robust construction with low-friction components ensures extended pump life and improved operating efficiency, even at high speeds.
Modular Control Mechanism
A variety of control options are available, allowing flexible configuration to meet different system requirements and improve integration efficiency.
Through-Drive Capability
Supports tandem and multiple pump configurations, as well as integration with other types of hydraulic pumps, enhancing system flexibility.
Energy-Efficient System Integration
Compatible with energy-saving control systems to reduce power consumption and oil temperature rise, extending equipment service life.
Applications
Excavators and construction machinery,Injection molding machines,CNC machines and machine tools,Forging and stamping equipment,Marine hydraulic systems

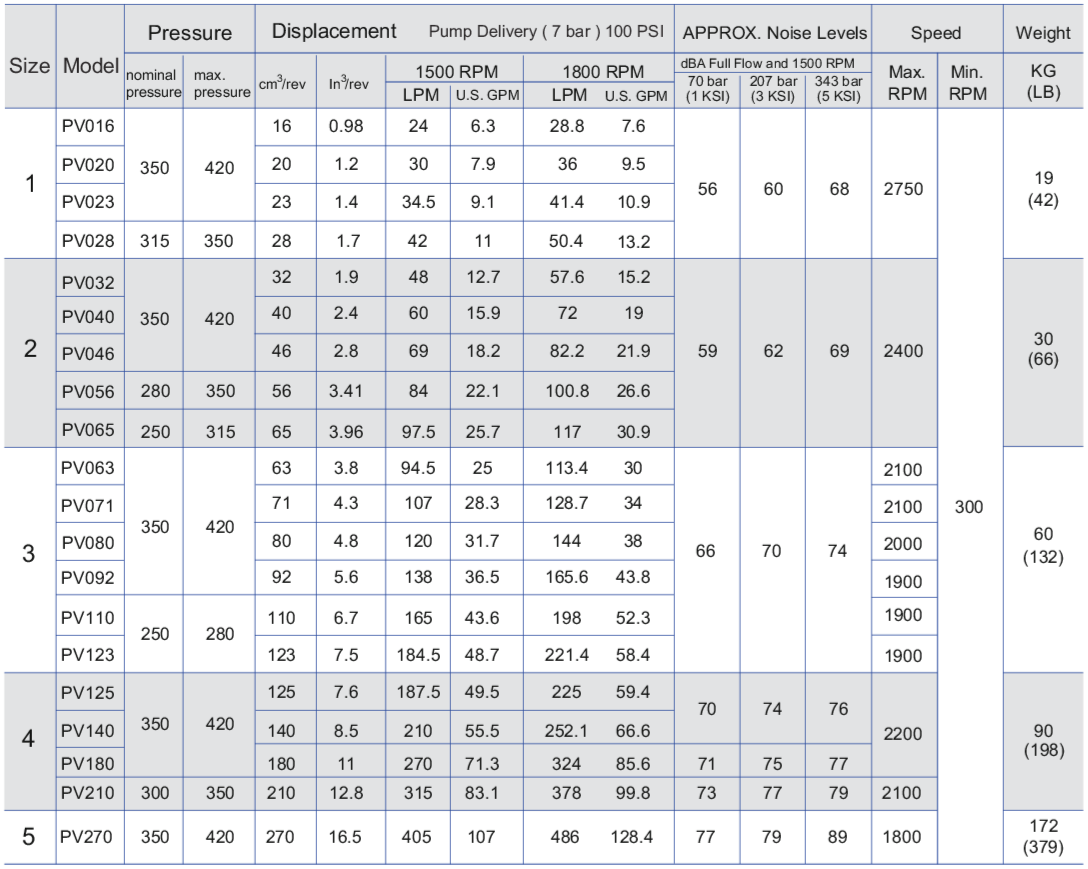

• Specifications

1.The pump should be installed with the oil port facing upward. The return line must be connected directly to the tank, and back pressure should be maintained below 2 bar.
2.At maximum pressure operation, each duty cycle must not exceed 6 seconds. Hydraulic oil cleanliness must comply with specifications; please refer to the operation manual for details.
3.YEOSHE provides multiple pump configurations. The pump can also be connected with other types of hydraulic pumps, using standard metric or SAE mounting interfaces.
Models up to PV320 are also available, covering applications from medium-duty to heavy-duty systems.
For special flow requirements, control options, or system integration solutions, please contact us.
